Admix NE320

Concrete super-plasticizer based on modified poly carboxylic ether



ADMIX NE320 is a high performance concrete superplasticizer which is designed for production of high performance and high strength concrete. It is also used in production of self-compacting concrete without any mechanical vibration. It contains no chloride and meets the requirements of ASTM C-494 Type A&F and Iranian National Standard 2930, as well as other international standards.
This product is compatible with all types of cements but due to variety of cement and aggregate’s properties, site tests are always recommended in each project.

Performance of ADMIX NE320 in concrete

Conventional superplasticizers such as those based on sulfonated melamine and naphthalene formaldehyde condensates, at the time of mixing, become absorbed onto the surface of the cement particles. This absorption which takes place at a very early stage in the hydration process increases the negative charge of the cement particle which causes better dispersion of the cement.

ADMIX NE320 is differentiated from conventional superplasticizers in that it is based on polycarboxylic ether with long lateral chains. This greatly improves cement dispersion at the start of the mixing process, in addition the presence of the lateral chains linked to the polymer backbone, generate a steric hindrance which stabilizes the cement particles capacity to separate and disperse. This mechanism provides a workable concrete even at low water cement ratios.

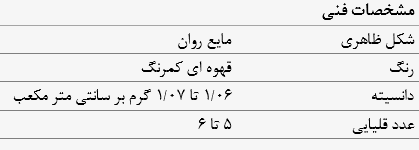

Properties

Appearance: Free flow liquid
Color: Light brown
Density: 1.06 – 1.07 g/cm³ at 20°C
pH: 5 – 6
Chloride content: < 0.1% w/w

Applications
The excellent dispersion properties of ADMIX NE320 makes it ideal admixture for production of high performance concrete where low water cement ratios are required. This property allows the production of short term high strength concrete with minimal voids and therefore optimum density.

Effect on hardened concretes
Besides stated effects of this admixture on fresh concrete while mixing and casting, it also has significant positive effects on hardened concrete such as increasing ultimate compressive and flexural strengths, higher E-modulus, improving adhesion to reinforcing and stressing steel, better resistance to carbonation, lower permeability, better resistance to aggressive atmospheric conditions, reducing shrinkage and creep and increasing durability.

Packaging
ADMIX NE320 is supplied in 220 kg drums and 1100 kg IBCs. Bulk delivery is possible based on request.

Compatibility
This product should not be premixed with any other admixtures unless be approved by White Damavand specialists. In case of requirement of utilizing other admixtures in concrete, it is highly recommended to add them separately. ADMIX NE320 is compatible with concretes containing silica fume, fly ash, or ground granulated blast or slag cement.

Consumption rate
Recommended dosage of ADMIX NE320 is 0.2 to 1.2 percent of cement (cementitious materials) content. Dosages outside this range are permissible subject to trial mixes.

How to use
ADMIX HE310 is a ready to use admixture and should be added to concrete at the time of batching. The best effect would be achieved if the admixture be added to concrete mix after adding 70 to 80 percent of water content. Never add ADMIX NE320 to dry cement or aggregate. Full mixing is necessary to achieve maximum benefit, so mix the concrete for 60 seconds in high speed mixer. Probable bleeding phenomenon in concrete is due to weak portion of aggregates and can be improved by adding fillers.

Storage
This product must be stored in original containers at above +5 °C under cover, out of direct sunlight and protect from extremes of temperature. If frozen, gradually thaw and agitate until completely reconstituted.
Failure to comply with the recommended storage conditions may result in premature deterioration of the product or packaging. For specific storage condition contact White Damavand Technical Services Department.

Safety awareness
ADMIX NE320 does not contain any hazardous substances. For more information about safety, please read product material safety data sheet.

Quality approval

All materials produced in White Damavand Co. are under strict control of QC department and meet the requirements of international standards.

For additional information, contact company’s specialists in Tehran at: 88678881-3 or email address: info@white-damavand.com.
